GROUNDING

ROD COUPLING – RC
Rod Coupling
Rod Coupling

For threaded rod to threaded rod or air terminal connection.
Fabricated from 3/4" (19mm) aluminum or brass hex stock.
Available with 3/8" (9.5mm), 1/2" (12.7mm) or 5/8" (15.9mm) internal threads, in combinations to meet your requirements.
Approximately 1-1/4" x 3/4" (32mm x 19mm).

BRASS
RC3/8B
RC1/2B
RC1/2-3/8B
RC5/8B
RC5/8-1/2B
RC5/8G-3/8B

ALUMINUM
RC1/2A
RC5/8A
RC1/2-5/8A
RC5/8G-1/2A
RC5/8G-5/8A

Rod Couplings are also available in stainless steel. Call factory with your specific needs.

POINT MOUNTS – PM
Round Point Mount
PM1B Round

A cast bronze base with no cable holder. 8 square inches of contact.
For direct mounting of air terminals on horizontal steel surfaces or vents.
3 –1/4" (8.26cm) diameter.
Approximately 6.75 oz. (191 grams).

Use suffix 3/8, 1/2 or 5/8 to denote air terminal thread size.

PM1A Aluminum

Approximately 2.25 oz. (64 grams).

Use suffix 1/2 or 5/8 to denote air terminal thread size.

Bump Back
PM2B Bump Back

A cast malleable bronze base with no cable holder.
For use on contoured or sloped surfaces.
1 –1/2" x 4 –1/4" (3.8cm x 10.8cm).
Approximately 5 oz. (142 grams).
Use suffix 3/8, 1/2 or 5/8 to denote air terminal thread size.

PM2A Aluminum

Approximately 1.6 oz. (45 grams).

Use suffix 1/2 or 5/8 to denote air terminal thread size.

Flat Back
PM3B Flat Back

A cast malleable bronze base with no cable holder. For use on flat or contoured surfaces.
2" x 4" (5.1cm x 10.2cm).
Approximately 5 oz. (142 grams).

Use suffix 3/8, 1/2 or 5/8 to denote air terminal thread size.

PM3A Aluminum

Approximately 2 oz. (57 grams).

Use suffix 1/2 or 5/8 to denote air terminal thread size.

Side Mount
PM5B Side Mount

A cast bronze base with no cable holder.
2 –15/16" x 2 –15/16" (7.5cm x 7.5cm).
Approximately 7.5 oz. (213 grams).

Use suffix 3/8, 1/2 or 5/8 to denote air terminal thread size.

PM5A Aluminum

Approximately 2.5 oz. (71 grams).
Use suffix 1/2 or 5/8 to denote air terminal thread size.

Offset Side Mount
PM7B Offset Side Mount

Cast bronze base with no cable holder. For direct mounting of air terminals on vertical surfaces where an off –set is necessary. Offset is 1 –1/2" (38.1mm). 2 –1/8" x 2" (53.98mm x 50.8mm); approximately 9.6 oz. (272 grams).

PM7A Aluminum

Approximately 3.2 oz. (91 grams).

Pitch Pocket
Pitch Pocket

Pitch Pockets are available in custom sizes to meet your special requirements.
Standard pitch pocket is .032 x 6 x 6 inch square (.08cm x 15.2cm x 15.2cm) with a 4" (10.16cm) riser that is 3/4" (1.9cm) in diameter.

Call factory for details.

PIPE CLAMPS – PC
Small Pipe Clamp
PC1T Small Pipe Clamp

Tinned cast bronze pipe clamp.
Fits up to 1 – 1/4" (3.2cm) O.D. pipe.
Two 5/16" x 1 – 1/4" stainless steel bolts.
1 – 5/8" x 2 – 5/8" (4.1cm x 6.7cm).
Approximately 8 oz. (227 grams).

PC1B Bronze

Approximately 8 oz. (227 grams).

PC1A Aluminum

Approximately 3.3 oz. (94 grams).

Strap-Type Pipe Clamp
PC6T Strap-Type Pipe Clamp

Adjustable strap can be used to bond to pipes with 4" to 6" (10.2cm to 15.2cm).
Tinned strap is 2" wide with cast bronze two – way cable clamp and brass barrel nut for uniform adjustment of the strap.

PC6A Aluminum

Strap – Type Pipe Clamps are also available for pipes with larger than 6" outside diameter.

Call the factory with your specifications.

U– BOLT PIPE CLAMPS – PC
Smallest U – Bolt Clamp
PC1UB Smallest U – Bolt Clamp

Cast bronze pipe clamp. Fits rods or pipes with1/2" to 1 – 1/4" (1.3cm to 3.2cm) O.D. Has 2 – way bolt pressure cable holder. 5/16 – 18 stainless steel U – bolt, nuts and washers. 2 – 1/2" x 3 – 1/2" (6.35cm x 8.9cm); approximately 9 oz. (255 grams).

PC1UT Tinned

Approximately 9 oz. (255 grams).

PC1UA Aluminum

Approximately 5 oz. (142 grams).

2 inch U – Bolt Clamp
PC2UB 2" U – Bolt Clamp

Cast bronze pipe clamp.
Fits up to 2" (5.1cm) O.D. pipe.
Has 2 – way bolt pressure cable holder with cover that can be turned 90 degrees.
5/16 – 18 stainless steel U – bolt, nuts and washers.
Approximately 8.5 oz. (241 grams).

PC2UT Tinned

Approximately 8.5 oz. (241 grams).

PC2UA Aluminum

Approximately 4.2 oz. (119 grams).

3 inch U – Bolt Clamp PC3UB 3" U – Bolt Clamp Cast bronze pipe clamp. Fits up to 3" (7.6cm) O.D. pipe. Has 2 – way bolt pressure cable holder with cover that can be turned 90 degrees. 5/16 – 18 stainless steel U – bolt, nuts and washers. Approximately 13 oz. (369 grams). PC3UT Tinned Approximately 13 oz. (369 grams). PC3UA Aluminum Approximately 6 oz. (170 grams).
4 inch U – Bolt Clamp
PC4UB 4" U – Bolt Clamp

Cast bronze pipe clamp.
Fits up to 4 – 1/2" (114.3mm) O.D. pipe.
Has 2 – way bolt pressure cable holder with cover that can be turned 90 degrees.
5/16 – 18 stainless steel U – bolt, nuts and washers.
Approximately 26.4 oz. (748 grams).

PC4UT Tinned

Approximately 26.4 oz. (748 grams).

PC4UA Aluminum

Approximately 11.8 oz. (335 grams).

6 inch U – Bolt Clamp
PC6UB 6" U – Bolt Clamp

Cast bronze pipe clamp. Fits up to 6.75" (171.45mm) O.D. pipe.
Two – way bolt pressure cable holder with cover that can be turned 90 degrees.
Stainless steel U – bolt, nuts and washers.
Approximately 2 lbs. 5.4 oz. (1060 grams).

PC6UT Tinned

Approximately 2 lbs. 5.4 oz. (1060 grams).

PC6UA Aluminum

Approximately 14 oz. (397 grams).

Sillcock Flange Connector
Sillcock Flange Connector

Tinned cast bronze water pipe bonding clamp for use behind flange of sillcock.
5 – 1/2" x 2 – 3/4" (139.7mm x 69.85mm).
Approximately 10.2 oz. (289 grams).

PEDESTAL CLAMPS – CP
Round Computer Pedestal Grounding Clamp
CP1T Round Computer Pedestal Grounding Clamp

Tin plated cast bronze clamp features two off – set bolt pressure cable holders to permit perpendicular conductors to be coursed without kinks and bends.
For use on Round pedestal diameters ranging from 1/2" to 1 – 1/8".
Accommodates wire sizes from #8 to 4/0 AWG.
Stainless steel U – bolt, hex bolt, nuts and washers, 4 – 3/8" x 1 – 1/4" x 1 – 1/2".
Approximately 12.2 oz. (346 grams).

Square Computer Pedestal Grounding Clamp
CP1TM Square Computer Pedestal Grounding Clamp

Tin plated cast bronze clamp for use on square pedestals measuring up to 1 – 1/8".
Accommodates wire sizes ranging from #8 to 4/0 AWG.
Stainless steel U – bolt, hex bolt and washers, 4 – 3/8" x 1 – 1/4" x 1 – 1/2".
Approximtely 12.2 oz. (346 grams).

Heavy Duty Round Pedestal Grounding Clamp
CP3B Heavy Duty Round Pedestal Grounding Clamp

Cast bronze pedestal clamp. Fits up to 1 – 1/4" diameter round computer pedestals.
Two bolt pressure cable holders can accommodate wire sizes from #6 to 2/0.
Stainless steel U – bolt, straight bolts, nuts and washers.
Approximately 17.4 oz. (494 grams).

Heavy Duty Square Pedestal Grounding Clamp
CP3BM Heavy Duty Square Pedestal Grounding Clamp

Cast bronze pedestal clamp. Fits up to 1 – 1/2" square computer pedestals.
Two bolt pressure cable holders can accommodate wire sizes from #6 to 2/0.
Stainless steel U – bolt, straight bolts, nuts and washers.
Approximately 17.4 oz. (494 grams).

GROUND ROD CLAMP – GC
Cast bronze, cable to 1/2 inch (1.27cm) ground rod clamp.
GC1/2 Cast bronze, cable to 1/2" (1.27cm) ground rod clamp.

Has two stainless steel bolts 3/8" – 16 x 1 – 1/4".
Approximately 8.75 oz. (248 grams).

GC5/8 Cast bronze, cable to 5/8" (1.59cm) ground rod clamp.

Has two stainless steel bolts 3/8" – 16 x 1 – 1/4".
Approximately 9.3 oz. (264 grams).

GC3/4 Cast bronze, cable to 3/4" (1.91cm) ground rod clamp.

Has two stainless steel bolts 3/8" – 16 x 1 – 1/4".
Approximately 9 oz. (255 grams).

Bolt Ground Rod Clamp
GCUB U – Bolt Ground Rod Clamp

Cast bronze cable to ground rod clamp.
Designed to join rods up to 7/8" OD and one or two cables with a cast bronze parallel cable holder.
Stainless steel u – bolt, nuts and washers.
1 – 7/8" x 2 – 3/6" (47.6mm x 55.6mm).
Approximately 8.8 oz. (250 grams).

Bolt Ground Rod Clamp
GW1T Tinned Guy Wire Clamp

Tinned cast bronze clamp.
Versatile clamp joins cables of various sizes.
Stainless steel bolts, nuts and washers.
2 – 3/8" x 1 – 3/4" (60.33mm x 44.45mm).
Approximately 16 oz. (454 grams).

Silicon bronze coupling
GROUND ROD SECTION COUPLING – GRC
GRC1/2 Silicon bronze coupling for 1/2" (1.27cm) sectional ground rod.

Approximately 2.65 oz. (75 grams).

GRC5/8 Silicon bronze coupling for 5/8" (1.59cm) sectional ground rod.

Approximately 4.5 oz. (128 grams).

GRC3/4 Silicon bronze coupling for 3/4" (1.91cm) sectional ground rod.

Approximately 4.8 oz. (136 grams).

GROUND PLATE – GP
Copper ground plate with two bolt pressure cable holders.
Copper ground plate with two bolt pressure cable holders.
GP1 18" x 18" x .032 (45.7cm x 45.7cm x .0813cm)
GP2 18" x 24" x .032 (45.7cm x 61cm x .0813cm)
GP3 18" x 36" x .032 (45.7cm x 91.4cm x .0813cm)

Call factory for information on other sizes.

GROUND RODS – GR
UL listed copper clad steel ground rods.
UL listed copper clad steel ground rods.
GR1X 1/2" x 8' (1.27cm x 2.44m)
GR1 1/2" x 9' (1.27cm x 2.74m)
GR2 1/2" x 10' (1.27cm x 3.05m)
GR2S 1/2" x 10' Sectional (1.27cm x 3.05m)
GR3X 5/8" x 8' (1.59cm x 2.44m)
GR3 5/8" x 10' (1.59cm x 3.05m)
GR3S 5/8" x 10' Sectional (1.59cm x 3.05m)
GR4 3/4" x 10' (1.91cm x 3.05m)
GR4S 3/4" x 10' Sectional (1.91cm x 3.05m)

Call factory for information on other available ground rod sizes.

A range of stainless steel ground rods is also available.

Ground Strap
Ground Strap

Flexible, tin – coated copper secondary bonding cable .
Ideal for bonding doors, gates and machinery.
Each strap has a tinned copper lug with a #10 eye on each end.
Strap is a #6 AWG stranded wire.
UL listed.

Ground Strap 11 11" long 27.9cm
Ground Strap 18 18" long 45.7cm
GROUND TEST WELLS
Heavy Duty Ground Test Well
Heavy Duty Ground Test Well
12" Length

3100 PVC Schedule 80 12 3/4" x 12"
3102 3/8" Steel 12 3/4" x 12"

18" Length

3120 PVC Schedule 80 12 3/4" x 18"
3122 3/8" Steel 12 3/4" x 18"

Heavy Duty High Traffic Area Ground Test Well
Heavy Duty High Traffic Area Ground Test Well
12" Length

3110 PVC Schedule 80 13 3/4" x 12"
3112 3/8" Steel 13 3/4" x 12"
3114 Concrete 13 3/4" x 12"

18" Length

3130 PVC Schedule 80 13 3/4" x 18"
3132 3/8" Steel 13 3/4" x 18"

Ground Test Wells are also available in 24" and 36" lengths.
All Ground Test Wells incorporate a heavy duty cast iron cover.
Additional sizes and configurations are available.
Call for more information.

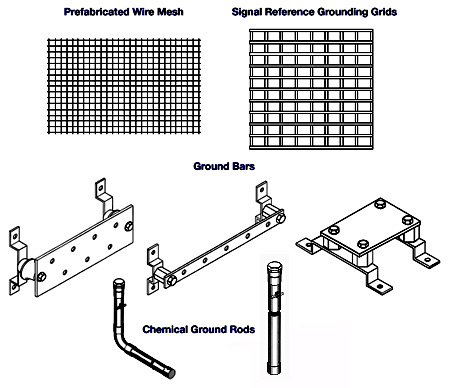

Specialty Grounding Products

A wide variety of specialty grounding products are available. Including:

Specialty Grounding Products

Special sizes, configurations, platings and options are available.
For more information on any of these specialty grounding items, please call the factory.
